HTB Sherlock: Nubilum-1 • Logbook

Scope

This write-up is based on the exported investigation notes and focuses on the activity timeline, CloudTrail pivots, and key AWS artifacts observed during the case.

Case Summary

The cloud administration team received an AWS warning that an EC2 instance in their environment was being used for malicious activity. The system administrator did not remember deploying the instance and later found more than six unexpected EC2 instances running in the account.

During the interview, the administrator confirmed several important points:

Most of the suspicious EC2 instances were deleted, except the instance suspected of malicious use.
No additional controls were added after discovery, such as MFA, IP allowlisting, or stronger S3 access restrictions.
The team frequently used an S3 bucket for backups, static websites, and scripts.
The team usually accessed the AWS console or APIs from 86.5.206.0/24.
The S3 bucket was intentionally accessible globally without authentication.

The investigation data included S3 directory listings under /forela-storage/, a Phase 1 UNIX collection, and AWS CloudTrail logs.

Investigation Goals

The main questions for the case were:

Which AWS API activity came from suspicious infrastructure?
When did the attacker first interact with the AWS environment?
Which EC2 instances, key pairs, and security groups were created or modified?
How did the activity connect to the suspected C2 host?
What did the administrator do after discovering the unauthorized instances?

Evidence Sources

Key artifacts used in the investigation:

AWS CloudTrail JSON logs for account 949622803460
S3 directory data under /forela-storage/
Phase 1 UNIX collection from the suspicious EC2 instance
PoshC2 logs from the suspected C2 host
Interview notes from the cloud system administrator

CloudTrail Preparation

The CloudTrail data contained 39,446 records. I flattened the nested CloudTrail JSON files into a single line-delimited file for easier searching and aggregation.

find CloudTrail/949622803460/CloudTrail/ -name '*.json' -exec cat {} + \
  | jq -c '.Records[]' \
  | wc -l

find CloudTrail/949622803460/CloudTrail/ -name '*.json' -exec cat {} + \
  | jq -c '.Records[]' \
  > cloudtrail.json

First Pivot: Suspicious Source IPs

The administrator stated that normal AWS activity should come from 86.5.206.0/24. I therefore started by grouping CloudTrail activity by identity and source IP, excluding common private address ranges.

NOT (
  sourceIPAddress="10.0.0.0/8"
  OR sourceIPAddress="172.16.0.0/12"
  OR sourceIPAddress="192.168.0.0/16"
)
| stats values(sourceIPAddress) as sourceIPAddresses by userIdentity.arn

The suspicious public range was 95.181.232.0/24. A WHOIS lookup of 95.181.232.9 supported treating this range as attacker-controlled infrastructure rather than expected administrator activity.

sourceIPAddress="95.181.232.0/24"
| stats min(eventTime), max(eventTime)

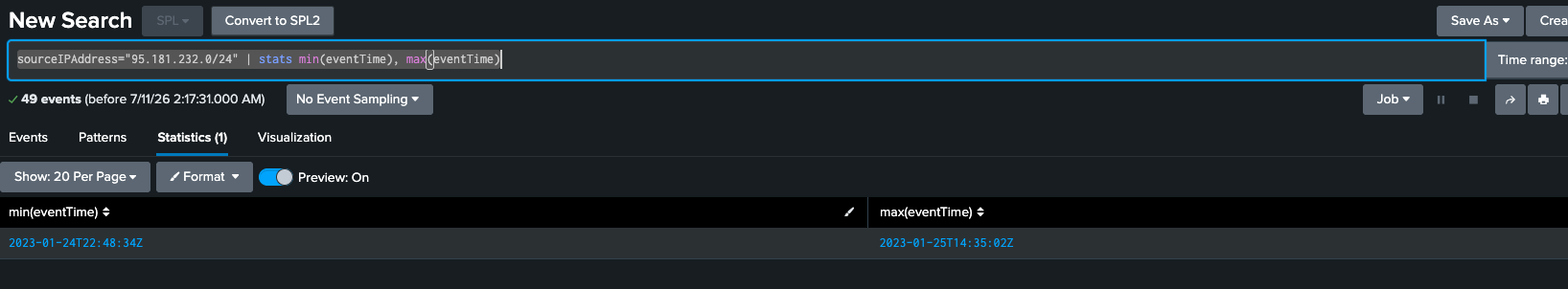

CloudTrail time range for suspicious source IP activity

The suspicious range appeared in CloudTrail between:

First event: 2023-01-24T22:48:34Z
Last event: 2023-01-25T14:35:02Z

AWS API Activity From The Suspicious Range

The next step was counting event names for activity from 95.181.232.0/24.

sourceIPAddress="95.181.232.0/24"
| stats count by eventName

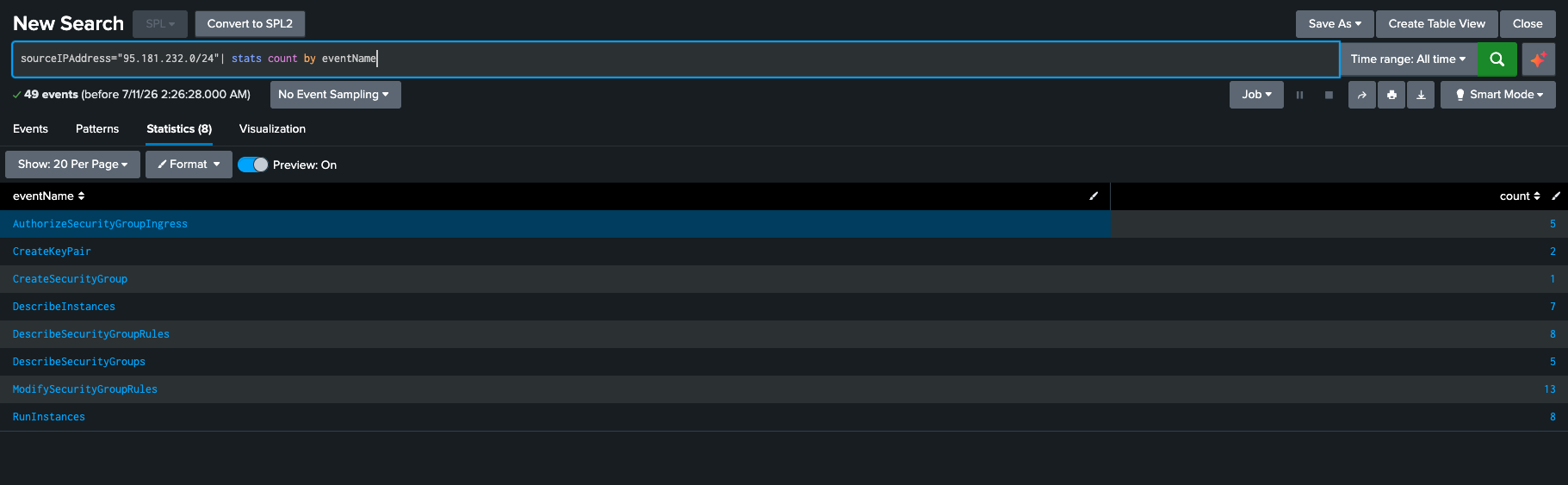

CloudTrail event counts from suspicious source IP activity

The major event types were:

RunInstances: EC2 instance launches
CreateKeyPair: SSH key pair creation
CreateSecurityGroup: security group creation
AuthorizeSecurityGroupIngress: security group ingress changes
ModifySecurityGroupRules: security group rule modification
DescribeInstances, DescribeSecurityGroups, and DescribeSecurityGroupRules: environment discovery

This pattern matches an attacker preparing infrastructure, opening access, and repeatedly enumerating the account state.

Security Group Evidence

Filtering for security group creation and enumeration showed activity from the same suspicious source range.

sourceIPAddress=95.181.232.0/24
eventName=CreateSecurityGroup OR eventName=DescribeSecurityGroups
| sort eventTime

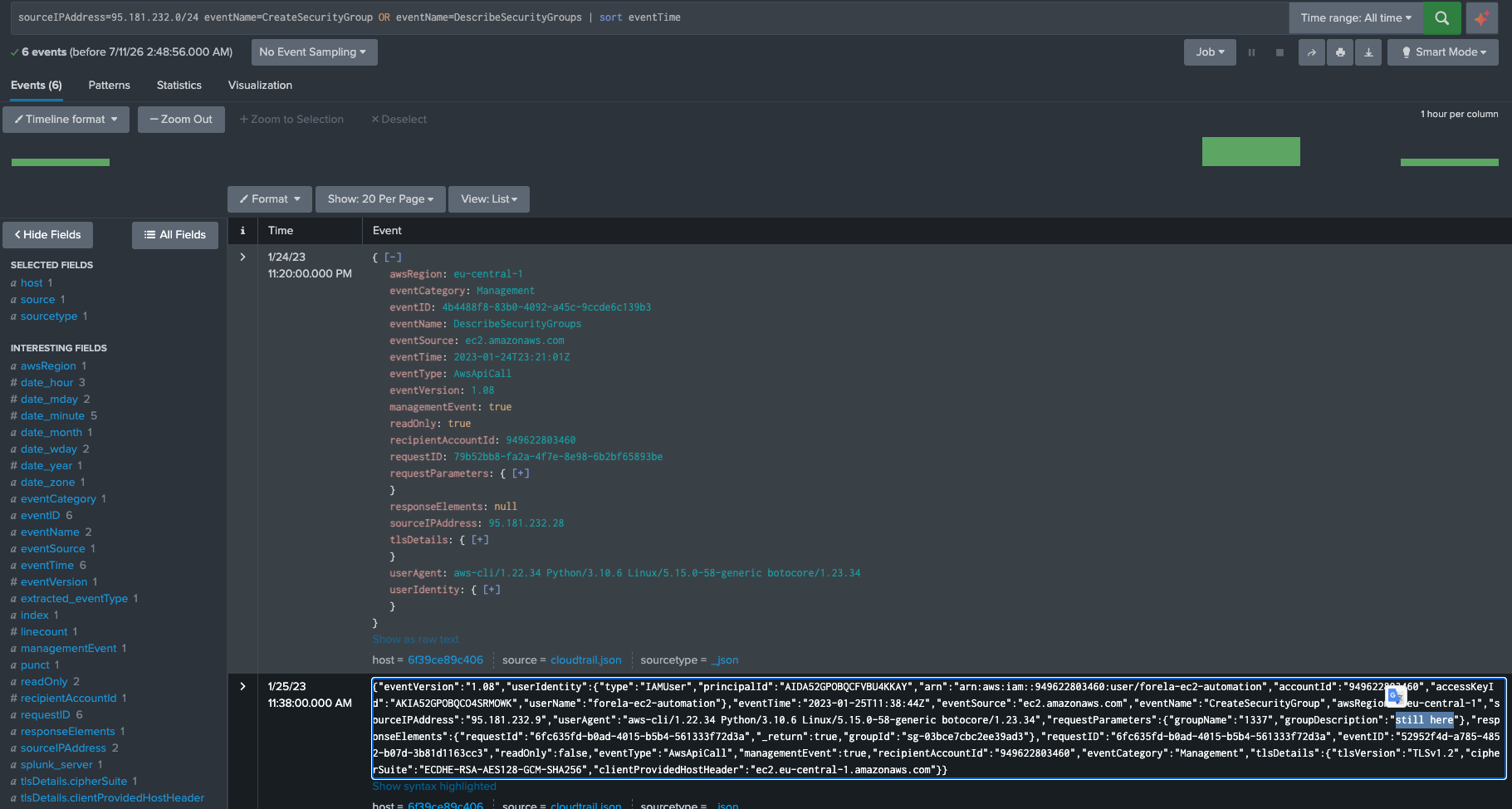

CloudTrail security group activity from suspicious source IP activity

One key event showed the IAM user forela-ec2-automation creating a security group named 1337 from 95.181.232.9 using the AWS CLI:

userIdentity.userName: forela-ec2-automation
sourceIPAddress: 95.181.232.9
userAgent: aws-cli/1.22.34 Python/3.10.6 Linux/5.15.0-58-generic botocore/1.23.34
eventName: CreateSecurityGroup
groupName: 1337
awsRegion: eu-central-1

Timeline

January 24, 2023

22:36:58Z: ec2.py was downloaded by the attacker IP.
22:37:59Z: ec2.py was downloaded again by the attacker IP.
22:48:34Z: First CloudTrail event from the suspicious activity window.
22:48:34Z: Key pair 1337.key was created.
22:54:45Z: RunInstances activity launched six t2.micro EC2 instances across three commands using 1337.key.
23:10:27Z: Security group rules were modified.
23:25:55Z: The administrator terminated six EC2 instances.

January 25, 2023

11:38:44Z: Security group 13337 was created.
11:51:02Z: RunInstances launched five t2.micro EC2 instances using 1337.key.
11:56:46Z: Six DescribeSecurityGroupRules and AuthorizeSecurityGroupIngress events showed security group enumeration and ingress modification.
12:01:38Z: Artifact 13337 was created.
12:02:25Z: RunInstances launched one t2.micro EC2 instance using 13337.
13:41:44Z: Two additional AuthorizeSecurityGroupIngress events showed further ingress changes.
13:59:00Z to 14:03:02Z: Two failed instance launches and one successful t2.micro launch occurred using 13337.
14:03:00Z: last-utmp.txt from the CatScale collection showed the last boot time of the PoshC2 EC2 instance.
14:35:02Z: Last observed CloudTrail activity from the attacker IP range.
15:00:46Z: PoshC2 logs showed victim activity from DESKTOP-R4KM0GJ\Marcus Athony.
15:11:37Z: The administrator terminated six EC2 instances.

Findings

The investigation points to unauthorized use of the forela-ec2-automation IAM user from 95.181.232.0/24.

The attacker created or used key material named 1337.key and 13337, launched multiple t2.micro EC2 instances, and changed security group ingress rules to support access to those instances. The activity was performed through the AWS CLI rather than the console, which aligns with scripted infrastructure deployment.

The second day shows repeated instance launch attempts and security group changes shortly before the CatScale collection records the PoshC2 host booting. Later PoshC2 logs show interaction from the victim workstation DESKTOP-R4KM0GJ, connecting the cloud abuse to post-exploitation activity.

Lessons Learned

Public S3 access should be treated as an exposure risk, especially when buckets contain scripts, backups, or deployment material.
MFA and source IP restrictions would have reduced the likelihood of successful AWS API abuse.
Terminating suspicious EC2 instances is not enough. Compromised IAM users, access keys, key pairs, security groups, and persistence mechanisms must also be reviewed and revoked.
CloudTrail event grouping by sourceIPAddress, eventName, userAgent, and userIdentity quickly separates expected administrator behavior from attacker automation.

Reference

0xdf: HTB Sherlock Nubilum-1
